INTERNAL BUNDLE CLEANING ROBOT – IDROBOX 3COMBO

IDROBOX 3COMBO

Internal Bundle Cleaning Robot Idrobox 3combo is a new modular design of the Idrobox, allows to connect 2 or 3 or 4 “Idrobox” into one “Idrobox 3combo” in order to operate with several lances at same time, with synchronized drive and variable speed of the frame.

Set including: complete pneumatic frame with air motors + air hoses and special top bracket for shell flange, positioning guiding box, 3-way remote control panel with integrated UHP safety button and complete air treatment station, air hoses, manual.

FRAME STD :

• Working area: 1500 mm x 1500 mm
• Speed up to : 0.1 m / s
• Pneumatic motors max. air consumption: 1200 l/min.
• Material: Aluminum, stainless steel
• Ultra lightweight;
• Safe & mobility & stability by adjustable legs with wheels;
• Improved stability by special joint in the upper part of the frame;
• Easy to install by one worker;
• The modular design allows the extension of the working area;
• Fine tuning of the lance through the variable speed of the frame with fast & slow modes;
• Wide range of options eg. video surveillance;
• Corrosion resistance with anodized aluminium profiles and stainless steel components.

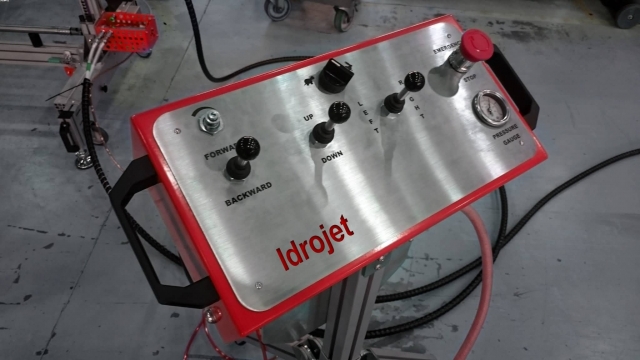

• ONTROL PANEL :

  • E-STOP button integrated with safety system of UHP unit directly;
  • A 5/3-way valves based control;
  • Adjustable speed;
  • Meets all safety standards and EU Directives;
