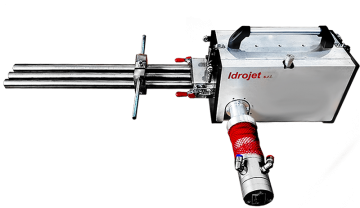

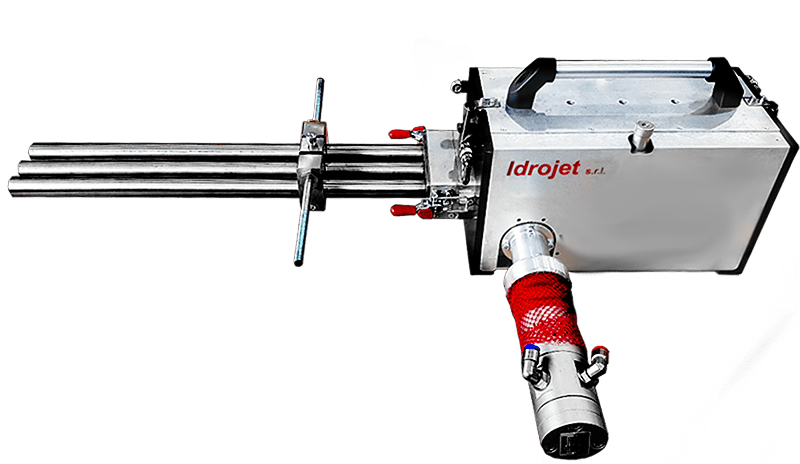

HEAT EXCHANGERS CLEANING SYSTEM – IDROBOX X3

The heat exchangers cleaning system Idrobox x3 was developed for high pressure cleaning using a flexible triple lance.

During the cleaning process of the heat exchangers, what we care about is safety, in fact the feeders of the Idrobox are positioned behind the operator.

Thanks to the modular design, Idrobox X3 can mount additional flexible lances.

The heat exchangers cleaning system Idrobox x3 can be integrated into a frame and then positioned, stabilized, and controlled via a control panel.

The reliability of the Idrobox X3 is ensured by a dedicated and supplied FRL air preparation unit.

 Technical Specifications:

Purpose: internal cleaning of heat exchangers
Number of lances [pcs]: 3
Possibility of vertical work: YES [only with frame “H” type]
Horizontal work: YES
Personalization of the application: YES [for individual needs]
Operating mode: automatic
Diameter lanc [OD] [mm]: 8.0 – 15.0
Min. / Max. air pressure [bar]: 3.0 / 6.3 [for each feeder]
Air demand [l / min. ]: approx. 600 [for each feeder]
Lance feed speed [m / s]: 0.58 – 1.4 [for each feeder]
Feed force [N]: 220 [for each feeder]
Contents: complete device with accessories, without frame
